一. The product features:
- The first PP cotton and the second activated carbon are disposable, please regularly replaced.
- When the UV RO makes sounds, it is time to replace the filter.，Different turbidity of water determines different validity of filter.， When it makes warning sounds,it will cease to produce water if the filter is not replaced
- (When the machine exudes the warning sound to inform replaces the filter)
- The machine uses RO reverse-osmosis-membrane to filter water;， it can efficiently reduce heavy metals of water, residual chlorine of tap water etc. Such as toxic substances.
- SY-UVRO-003 use UV ultraviolet lamp to kill germs, thorough sterilization. (Sterile water is directly drunk.)
- If water needs to boiled, it will not filthy
- Everyone easily install the machine by yourself.
|
二.Where to put SY-UVRO-003:
- the distance between the product and the outlet of wastewater is not more than 20 meters
- the outlet of wastewater pipeline must not be higher 3 meters than the product.
- The kitchen table or a tea table in living room will be ideal place.
** NOTE: the pipeline of spillway cannot be higher than the outlet of spillway**

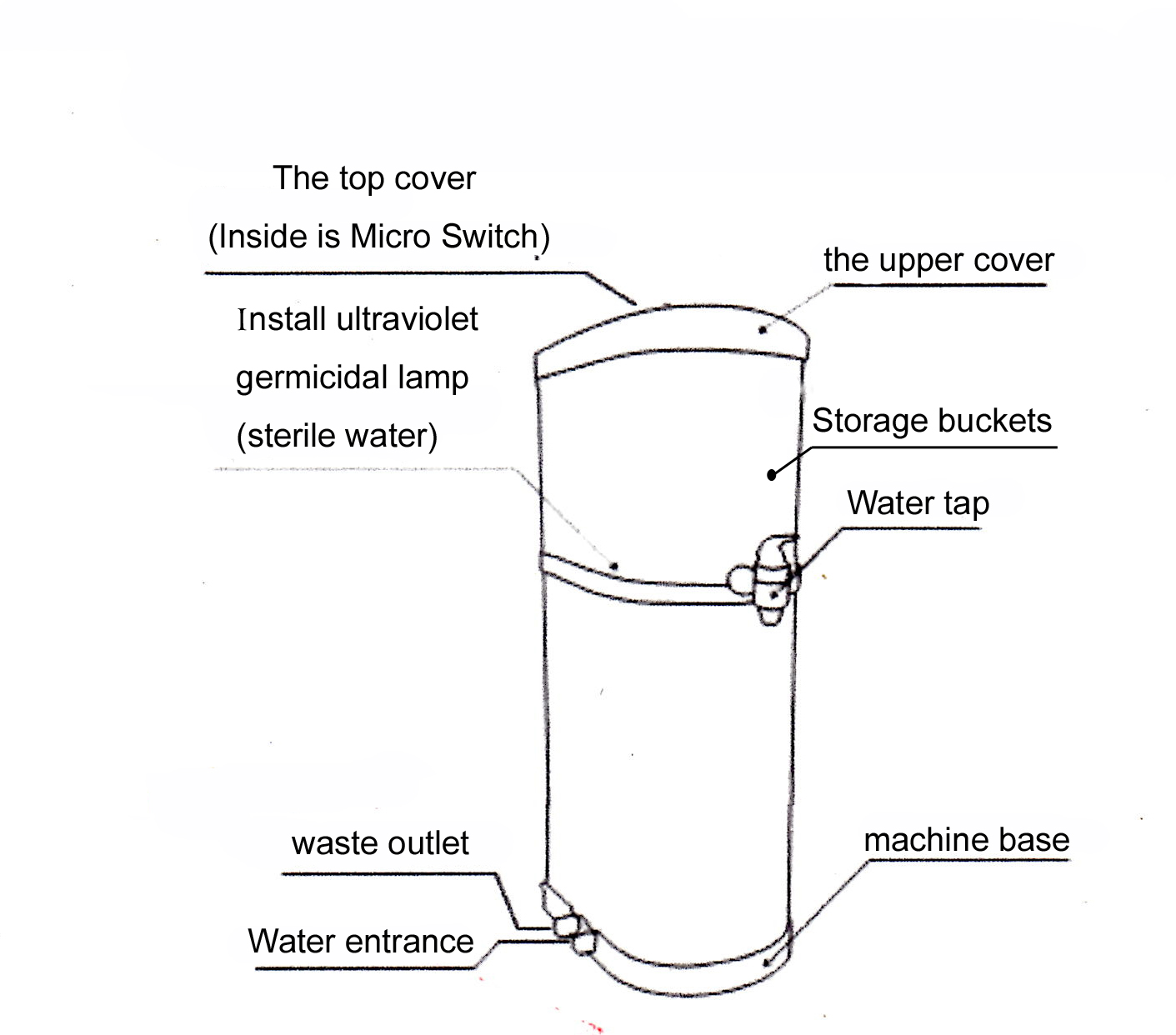

三 . as to the interface of water inlet and wastewater outlet, cleaning and maintenance，please see the picture for example,，V-shape is for the water interface, do not make a mistake.
四.Capacity
- The storage capacity of RO buckets desktop in accordance with a high degree of reservoir is divided into buckets 11,7,5 liter capacity.
Product size
- 11 liters of water: length (deep) 228mm * (face) width 217mm * high750mm
- 7 liters of water: length(deep) 228mm * (face) width 217mm * high 645mm
- 5 liters of water: length (deep) 228mm * (face) width 217mm * high595mm
|
 |
 |
一.． The product features:
- The first PP cotton and the second activated carbon are disposable, please regularly replaced.
- When the UV RO makes sounds, it is time to replace the filter.Different turbidity of water determines different validity of filter.When it makes warning sounds,it will cease to produce water if the filter is not replaced
(When the machine exudes the warning sound to inform replaces the filter)
- The machine uses RO reverse-osmosis-membrane to filter water;， it can efficiently reduce heavy metals of water, residual chlorine of tap water etc. Such as toxic substances.
- If water needs to boiled, it will not filthy.
- Everyone easily install the machine by yourself.
|
二. Where to put SY-UVRO-004:
- the distance between the product and the outlet of wastewater is not more than 20 meters
- the outlet of wastewater pipeline must not be higher 3 meters than the product.
- The kitchen table or a tea table in living room will be ideal place.
** NOTE: the pipeline of spillway cannot be higher than the outlet of spillway.**
三 . as to the interface of water inlet and wastewater outlet, cleaning and maintenance， please see the picture for example,，V-shape is for the water interface, do not make a mistake.
四. Capacity
Product size
- 11 liters of water: length (deep) 228mm * (face) width 217mm * high750mm
- 7 liters of water: length(deep) 228mm * (face) width 217mm * high 645mm
- 5 liters of water: length (deep) 228mm * (face) width 217mm * high595mm
|
 |
一. The product features:
- The first PP cotton and the second activated carbon are disposable, please regularly replaced.
- When the UV RO makes sounds, it is time to replace the filter.，Different turbidity of water determines different validity of filter.
|
|
When it makes warning sounds,it will cease to produce water if the filter is not replaced。
(When the machine exudes the warning sound to inform replaces the filter)
- The machine uses RO reverse-osmosis-membrane to filter water;， it can efficiently reduce heavy metals of water, residual chlorine of tap water etc. Such as toxic substances.。
|
二.Where to put SY-UVRO-005:
- The kitchen cabinets under kitchen table will be ideal place.
三. as to the interface of water inlet and the interface of wastewater outlet, cleaning and maintenance，please see the picture for example，V-shape is for the water interface, do not make a mistake.
四.Product size
- Under sink model : length (deep) 228mm * (face) width 217mm *high 395mm
- Under sink water tank: length(deep) 280mm *high 395mm(include the switch)
|
 |
 |
一.The product features:
- Automatically refill function, small size, large capacity, space saving,
exempt from the troubles of artificial refill water;
- This machine has "Doesn't provide raw water design"(This machine has "Doesn't provide Unboiled water design",).cold and hot water both through the electrical heating spoon, and feed water after boiling.。
- Provide for 80 to 98 degree water, hot water temperature is usually about 80 degrees or more.,For instant noodles or hot tea, just press reheat button;
- Hot water storage tank will be reheating by high cost and high quality electrical heating spoon,this could prevent heaters loosing and cause fire,And the outer layer coated with fire-rated fiberglass and insulation cotton, more energy efficient(most of the drinking fountains are still using Heater heating, and does not add insulation cotton)
- electrical heating spoon and hot water storage tank are respective independent and anhydrous disconnect device and
- Automatically heating cold water storage tank across the stainless steel shell to install convection fan, this can quickly cooling hot water.
|
二.Where to put drinking fountains:
- The kitchen table or a tea table in living room will be ideal place.
Product size
|
 |
 |
一.The product features:
|
|
 |
Maintenance and cleaning:
- Please pull out the plug
- Wipe the casing with a soft cloth soaked moistened with a diluted neutral detergent.
。
- Do not use a stiff brush and other volatile solvents to clean the body
|
|
